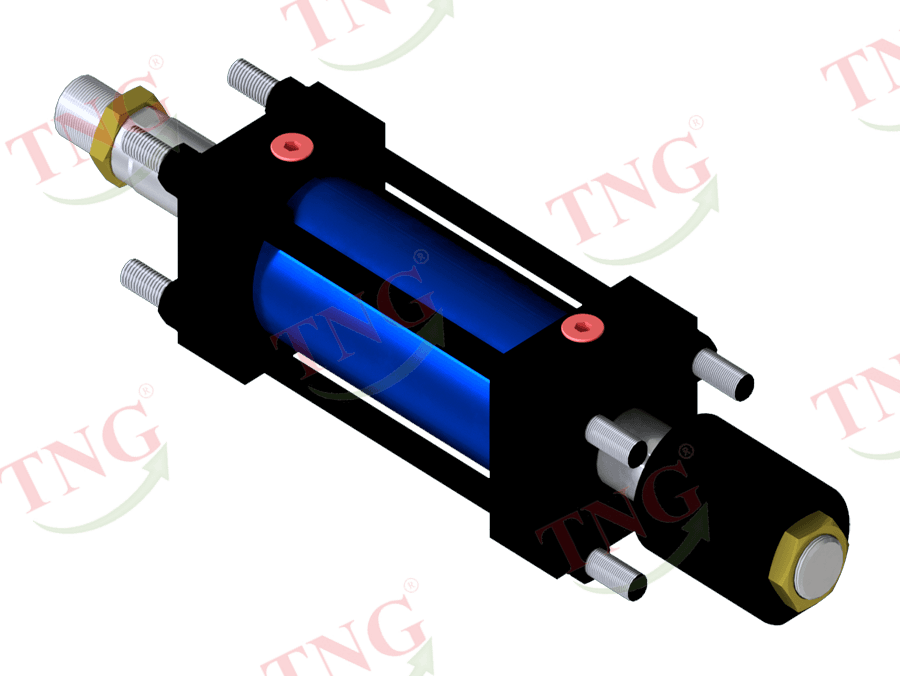

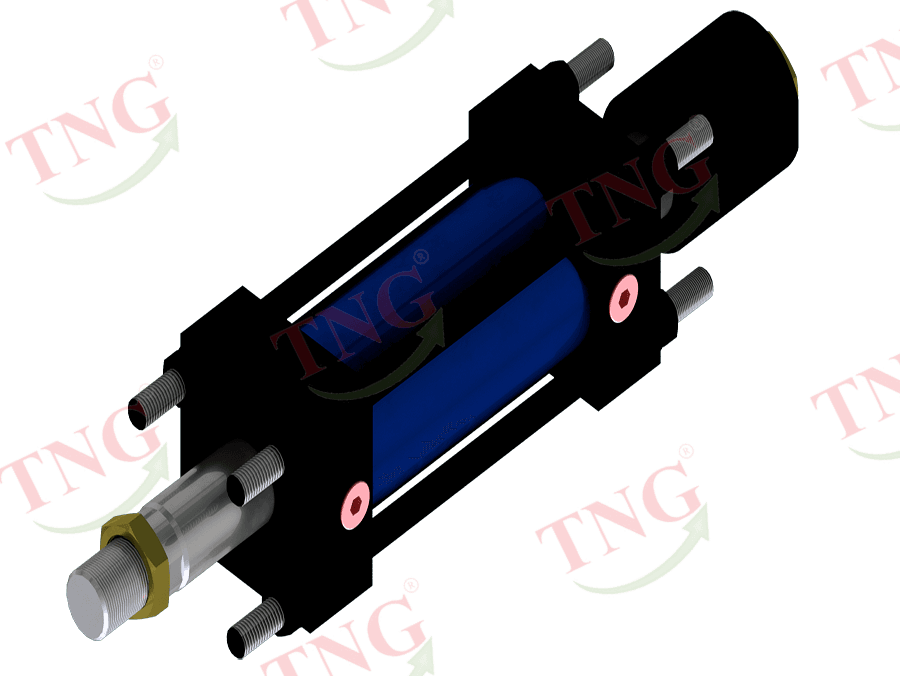

Xilanh vuông TDHD is engineered for industrial hydraulic applications, focusing on durability, sealing integrity and stable operation under heavy load.
Materials & construction
Materials per part
Body & barrel material
Carbon steel (STKM-13C / St52)
Power fluid grade
ISO VG68
Construction & operating range
Construction type
Welded
Cushioning
Both ends
Operating specifications
Operating specifications
Specification
Value
Working pressure
140 bar
Oil viscosity grade
ISO VG68
Series / type code
TDHD
Product code decoder
No code decoder is available for this product yet.
Assembly types
TDHD-I-MT
Default
Clevis / Trunnion
Head
clevis
Tail
trunnion
TDHD-FA-CB
Front flange / Rear clevis
Head
front_flange
Tail
rear_clevis
Standard dimension tables

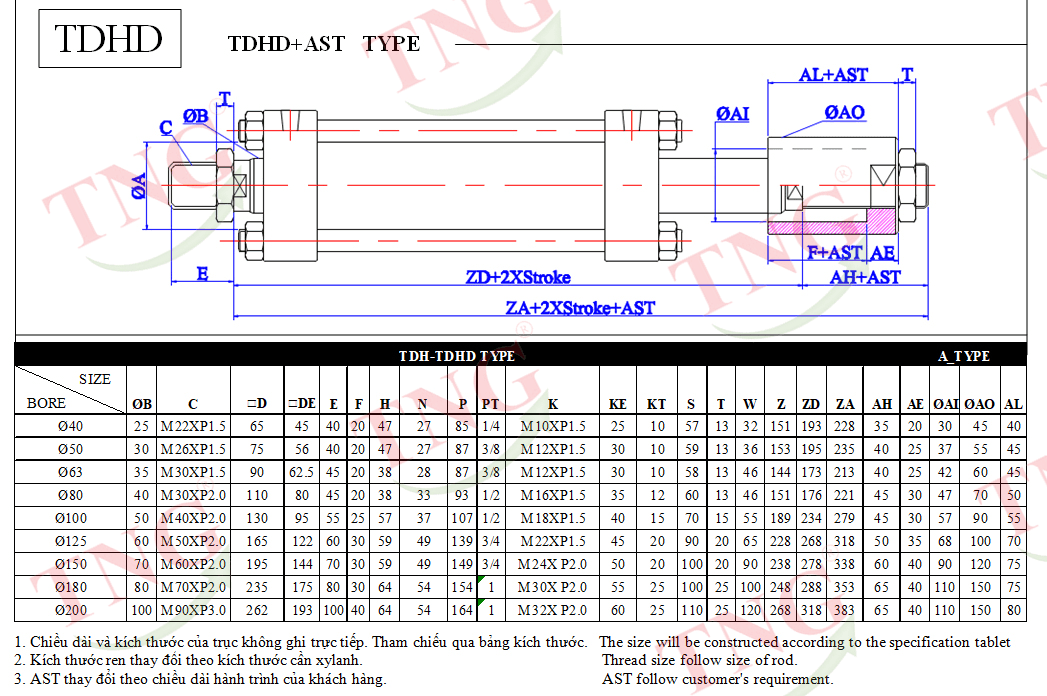

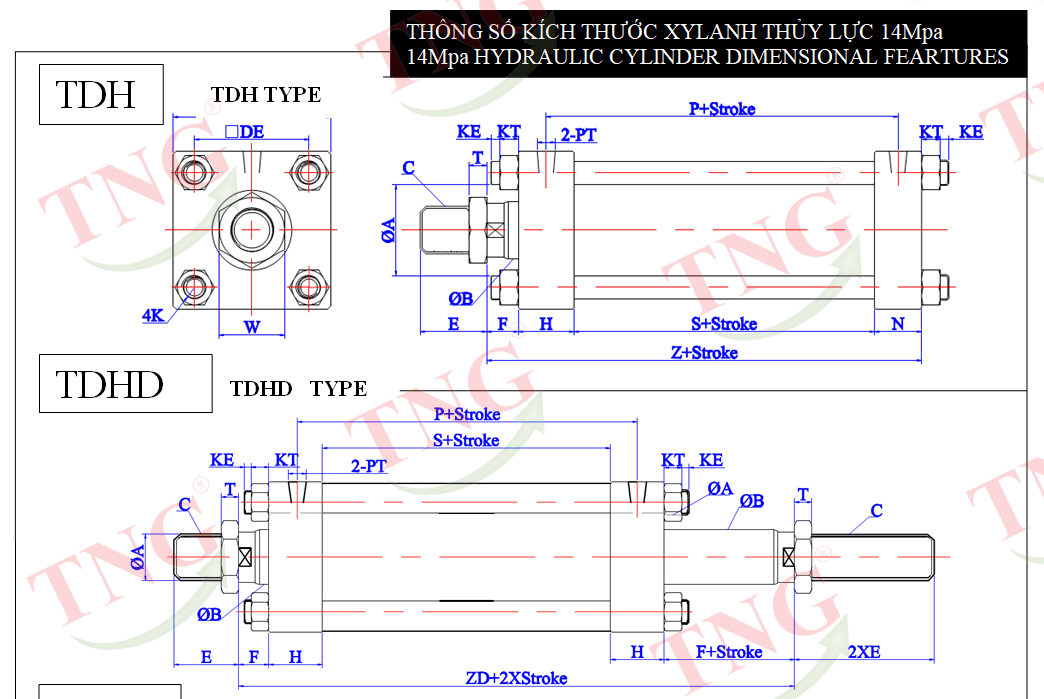

Kích thước lắp đặt — TDHD + AST TYPE
Size
bore
OB(mm)
C
OD(mm)
ODE(mm)
Variants and assembly types
Head/tail mounting combinations and special variants available to order.
Real-world applications
Used in construction machinery, lifting equipment, industrial lines and agricultural mechanisation.
2D/3D CAD files
No CAD files are available for this product yet.
Contact the TNG engineering team for model selection support and a fast quote.
Quote request details
Product of interest
Product code
TDHD
Product name
Square cylinder TDHD
Documents and CAD files
Download the PDF catalogue and 2D/3D CAD files for design and system integration.
E
(mm)
F(mm)
H(mm)
N(mm)
P(mm)
PT
K
KE(mm)
KT(mm)
S(mm)
T(mm)
W(mm)
Z(mm)
ZD(mm)
ZA(mm)
AH(mm)
AE(mm)
OAI(mm)
OAO(mm)
AL(mm)
Ø40
25
M22XP1.5
65
45
40
20
47
27
85
1/4
M10XP1.5
25
10
57
13
32
151
193
228
35
20
30
45
40
