丸型シリンダー

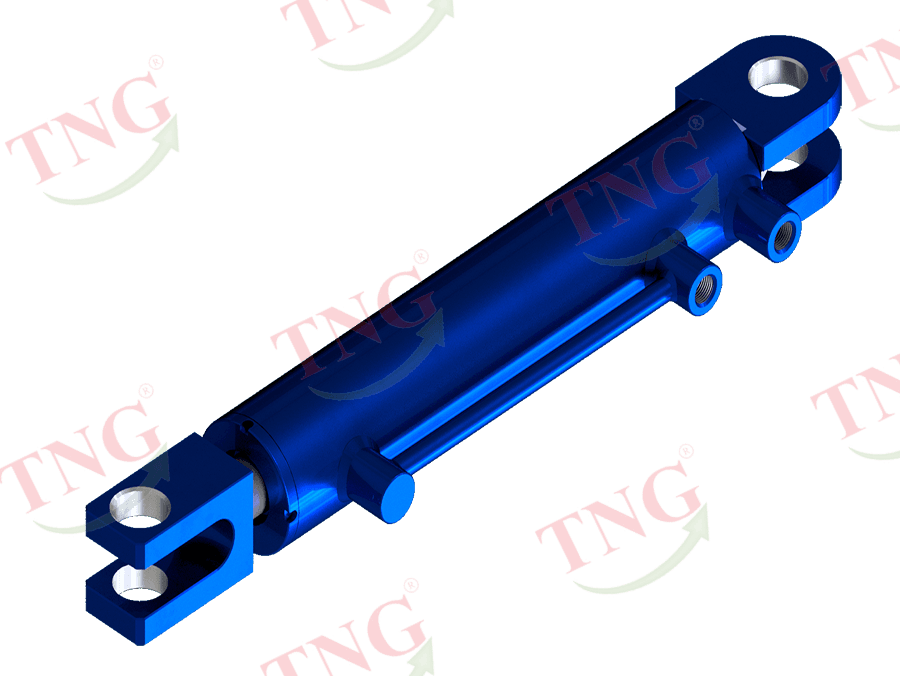

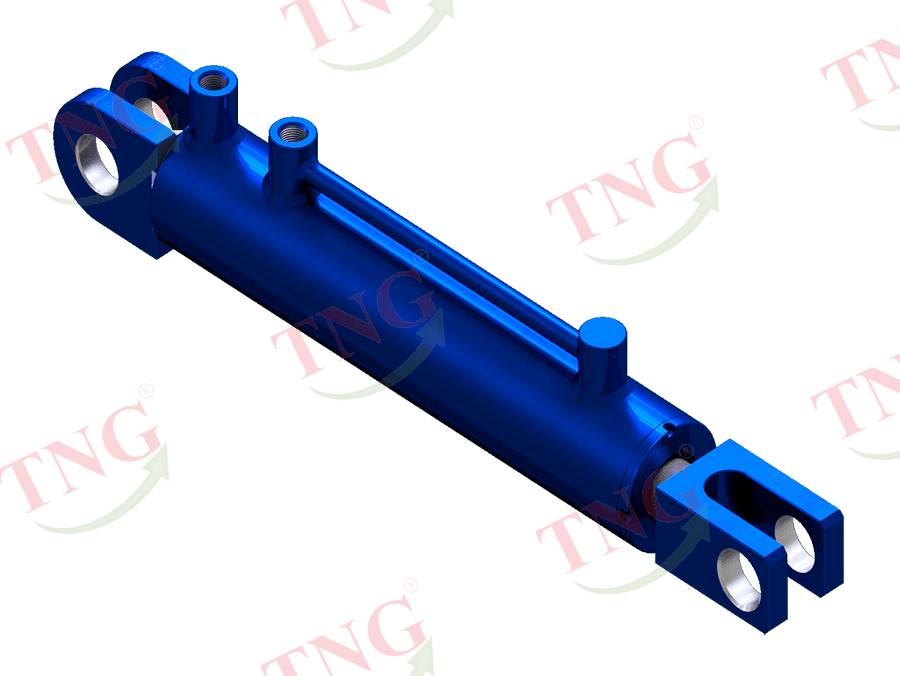

Xilanh tròn TDR-CB-Y 製品コード TDR-CB-Y Xilanh tròn TDR đáy mắt cầu CB, đầu cần chạc Y.
Tác động hai chiều
Vật liệu thân Thép carbon (STKM-13C / St52)
Đường kính lòng ống (bore) 80 mm
Kiểu chế tạo Xilanh tròn (round-line)
Giảm chấn Giảm chấn hai đầu
Kiểu lắp đầu Đầu cần kiểu Y (chạc) Tổng quan Xilanh tròn TDR-CB-Y Xilanh tròn TDR-CB-Y được thiết kế cho các ứng dụng thủy lực công nghiệp, chú trọng độ bền, độ kín và khả năng vận hành ổn định trong điều kiện tải nặng.
材料＆構造 部品ごとの材料
Body & barrel material Thép carbon (STKM-13C / St52)
Power fluid grade ISO VG68 構造＆使用範囲
Construction type Xilanh tròn (round-line)
Cushioning Giảm chấn hai đầu 使用仕様 使用仕様 仕様 値 Working pressure 140 bar Oil viscosity grade ISO VG68 Series / type code TDR
製品コード解読 この製品のコード解読はまだありません。
組立タイプ Bích chốt / Mặt bích
ヘッド側 clevis
テール側 trunnion Mặt bích trước / Chốt sau
ヘッド側 front_flange
テール側 rear_clevis Biến thể và kiểu lắp ráp Các tổ hợp kiểu lắp đầu/đuôi và biến thể đặc biệt có thể đặt hàng theo yêu cầu.
Ứng dụng thực tế Ứng dụng trong máy công trình, thiết bị nâng hạ, dây chuyền công nghiệp và cơ giới hóa nông nghiệp.
2D/3D CADファイル この製品のCADファイルはまだありません。
Liên hệ đội ngũ kỹ thuật TNG để được tư vấn chọn model phù hợp và nhận báo giá nhanh.
見積依頼の詳細 対象製品
製品コード TDR-CB-Y
製品名 Xilanh tròn TDR-CB-Y Tài liệu và file CAD Tải catalogue PDF và file CAD 2D/3D phục vụ thiết kế, tích hợp hệ thống.
40/25/180 40 25 180 22.6 13.8 G 3/8
40/25/210 40 25 210 26.4 16.1 G 3/8
50/30/140 50 30 140 27.5 17.6 G 3/8
50/30/180 50 30 180 35.3 22.6 G 3/8
50/30/210 50 30 210 41.2 26.4 G 3/8
50/35/140 50 35 140 27.5 14 G 3/8
50/35/180 50 35 180 35.3 18 G 3/8
50/35/210 50 35 210 41.2 21 G 3/8
60/30/140 60 30 140 39.6 29.7 G 3/8
60/30/180 60 30 180 50.9 38.2 G 3/8
60/30/210 60 30 210 59.4 44.5 G 3/8
60/35/140 60 35 140 39.6 26.1 G 3/8
60/35/180 60 35 180 50.9 33.6 G 3/8
60/35/210 60 35 210 59.4 39.2 G 3/8
60/40/140 60 40 140 39.6 22 G 3/8
60/40/180 60 40 180 50.9 28.3 G 3/8
60/40/210 60 40 210 59.4 33 G 3/8
63/30/140 63 30 140 43.6 33.7 G 3/8
63/30/180 63 30 180 56.1 43.4 G 3/8
63/30/210 63 30 210 65.5 50.6 G 3/8
63/35/140 63 35 140 43.6 30.2 G 3/8
63/35/180 63 35 180 56.1 38.8 G 3/8
63/35/210 63 35 210 65.5 45.3 G 3/8
63/40/140 63 40 140 43.6 26 G 3/8
63/40/180 63 40 180 56.1 33.5 G 3/8
63/40/210 63 40 210 65.5 39.1 G 3/8
63/45/140 63 45 140 43.6 21.4 G 3/8
63/45/180 63 45 180 56.1 27.5 G 3/8
63/45/210 63 45 210 65.5 32.1 G 3/8
70/35/140 70 35 140 53.9 40.4 G 3/8
70/35/180 70 35 180 69.3 52 G 3/8
70/35/210 70 35 210 80.8 60.6 G 3/8
70/40/140 70 40 140 53.9 36.3 G 3/8
70/40/180 70 40 180 69.3 46.7 G 3/8
70/40/210 70 40 210 80.8 54.4 G 3/8
70/45/140 70 45 140 53.9 31.6 G 3/8
70/45/180 70 45 180 69.3 40.6 G 3/8
70/45/210 70 45 210 80.8 47.4 G 3/8
70/50/140 70 50 140 53.9 26.4 G 3/8
70/50/180 70 50 180 69.3 33.9 G 3/8
70/50/210 70 50 210 80.8 39.6 G 3/8
80/40/140 80 40 140 70.4 52.8 G 1/2
80/40/180 80 40 180 90.5 67.9 G 1/2
80/40/210 80 40 210 105.6 79.2 G 1/2
80/45/140 80 45 140 70.4 48.1 G 1/2
80/45/180 80 45 180 90.5 61.9 G 1/2
80/45/210 80 45 210 105.6 72.2 G 1/2
80/50/140 80 50 140 70.4 42.9 G 1/2
80/50/180 80 50 180 90.5 55.1 G 1/2
80/50/210 80 50 210 105.6 64.3 G 1/2
80/55/140 80 55 140 70.4 37.1 G 1/2
80/55/180 80 55 180 90.5 47.7 G 1/2
80/55/210 80 55 210 105.6 55.7 G 1/2
80/60/140 80 60 140 70.4 30.8 G 1/2
80/60/180 80 60 180 90.5 39.6 G 1/2
80/60/210 80 60 210 105.6 46.2 G 1/2
90/50/140 90 50 140 89.1 61.6 G 1/2
90/50/180 90 50 180 114.5 79.2 G 1/2
90/50/210 90 50 210 133.6 92.4 G 1/2
90/55/140 90 55 140 89.1 55.8 G 1/2
90/55/180 90 55 180 114.5 71.7 G 1/2
90/55/210 90 55 210 133.6 83.7 G 1/2
90/60/140 90 60 140 89.1 49.5 G 1/2
90/60/180 90 60 180 114.5 63.6 G 1/2
90/60/210 90 60 210 133.6 74.2 G 1/2
90/65/140 90 65 140 89.1 42.6 G 1/2
90/65/180 90 65 180 114.5 54.8 G 1/2
90/65/210 90 65 210 133.6 63.9 G 1/2
90/70/140 90 70 140 89.1 35.2 G 1/2
90/70/180 90 70 180 114.5 45.2 G 1/2
90/70/210 90 70 210 133.6 52.8 G 1/2
100/50/140 100 50 140 110 82.5 G 1/2
100/50/180 100 50 180 141.4 106 G 1/2
100/50/210 100 50 210 164.9 123.7 G 1/2
100/55/140 100 55 140 110 76.7 G 1/2
100/55/180 100 55 180 141.4 98.6 G 1/2
100/55/210 100 55 210 164.9 115 G 1/2
100/60/140 100 60 140 110 70.4 G 1/2
100/60/180 100 60 180 141.4 90.5 G 1/2
100/60/210 100 60 210 164.9 105.6 G 1/2
100/65/140 100 65 140 110 63.5 G 1/2
100/65/180 100 65 180 141.4 81.6 G 1/2
100/65/210 100 65 210 164.9 95.2 G 1/2
100/70/140 100 70 140 110 56.1 G 1/2
100/70/180 100 70 180 141.4 72.1 G 1/2
100/70/210 100 70 210 164.9 84.1 G 1/2
110/55/140 110 55 140 133 99.8 G 1/2
110/55/180 110 55 180 171.1 128.3 G 1/2
110/55/210 110 55 210 199.6 149.7 G 1/2
110/60/140 110 60 140 133 93.5 G 1/2
110/60/180 110 60 180 171.1 120.2 G 1/2
110/60/210 110 60 210 199.6 140.2 G 1/2
110/65/140 110 65 140 133 86.6 G 1/2
110/65/180 110 65 180 171.1 111.3 G 1/2
110/65/210 110 65 210 199.6 129.9 G 1/2
110/70/140 110 70 140 133 79.2 G 1/2
110/70/180 110 70 180 171.1 101.8 G 1/2
110/70/210 110 70 210 199.6 118.8 G 1/2
110/75/140 110 75 140 133 71.2 G 1/2
110/75/180 110 75 180 171.1 91.5 G 1/2
110/75/210 110 75 210 199.6 106.8 G 1/2
110/80/140 110 80 140 133 62.7 G 1/2
110/80/180 110 80 180 171.1 80.6 G 1/2
110/80/210 110 80 210 199.6 94 G 1/2
120/60/140 120 60 140 158.3 118.8 G 3/4
120/60/180 120 60 180 203.6 152.7 G 3/4
120/60/210 120 60 210 237.5 178.1 G 3/4
120/65/140 120 65 140 158.3 111.9 G 3/4
120/65/180 120 65 180 203.6 143.8 G 3/4
120/65/210 120 65 210 237.5 167.8 G 3/4
120/70/140 120 70 140 158.3 104.5 G 3/4
120/70/180 120 70 180 203.6 134.3 G 3/4
120/70/210 120 70 210 237.5 156.7 G 3/4
120/75/140 120 75 140 158.3 96.5 G 3/4
120/75/180 120 75 180 203.6 124.1 G 3/4
120/75/210 120 75 210 237.5 144.7 G 3/4
120/80/140 120 80 140 158.3 88 G 3/4
120/80/180 120 80 180 203.6 113.1 G 3/4
120/80/210 120 80 210 237.5 131.9 G 3/4
120/90/140 120 90 140 158.3 69.3 G 3/4
120/90/180 120 90 180 203.6 89.1 G 3/4
120/90/210 120 90 210 237.5 103.9 G 3/4
125/60/140 125 60 140 171.8 132.2 G 3/4
125/60/180 125 60 180 220.9 170 G 3/4
125/60/210 125 60 210 257.7 198.3 G 3/4
125/65/140 125 65 140 171.8 125.3 G 3/4
125/65/180 125 65 180 220.9 161.2 G 3/4
125/65/210 125 65 210 257.7 188 G 3/4
125/70/140 125 70 140 171.8 117.9 G 3/4
125/70/180 125 70 180 220.9 151.6 G 3/4
125/70/210 125 70 210 257.7 176.9 G 3/4
125/75/140 125 75 140 171.8 110 G 3/4
125/75/180 125 75 180 220.9 141.4 G 3/4
125/75/210 125 75 210 257.7 164.9 G 3/4
125/80/140 125 80 140 171.8 101.4 G 3/4
125/80/180 125 80 180 220.9 130.4 G 3/4
125/80/210 125 80 210 257.7 152.2 G 3/4
125/90/140 125 90 140 171.8 82.7 G 3/4
125/90/180 125 90 180 220.9 106.4 G 3/4
125/90/210 125 90 210 257.7 124.1 G 3/4
140/70/140 140 70 140 215.5 161.6 G 3/4
140/70/180 140 70 180 277.1 207.8 G 3/4
140/70/210 140 70 210 323.3 242.5 G 3/4
140/75/140 140 75 140 215.5 153.7 G 3/4
140/75/180 140 75 180 277.1 197.6 G 3/4
140/75/210 140 75 210 323.3 230.5 G 3/4
140/80/140 140 80 140 215.5 145.1 G 3/4
140/80/180 140 80 180 277.1 186.6 G 3/4
140/80/210 140 80 210 323.3 217.7 G 3/4
140/90/140 140 90 140 215.5 126.4 G 3/4
140/90/180 140 90 180 277.1 162.6 G 3/4
140/90/210 140 90 210 323.3 189.7 G 3/4
140/100/140 140 100 140 215.5 105.6 G 3/4
140/100/180 140 100 180 277.1 135.7 G 3/4
140/100/210 140 100 210 323.3 158.3 G 3/4
140/120/140 140 120 140 215.5 57.2 G 3/4
140/120/180 140 120 180 277.1 73.5 G 3/4
140/120/210 140 120 210 323.3 85.8 G 3/4
150/70/140 150 70 140 247.4 193.5 G 3/4
150/70/180 150 70 180 318.1 248.8 G 3/4
150/70/210 150 70 210 371.1 290.3 G 3/4
150/75/140 150 75 140 247.4 185.6 G 3/4
150/75/180 150 75 180 318.1 238.6 G 3/4
150/75/210 150 75 210 371.1 278.3 G 3/4
150/80/140 150 80 140 247.4 177 G 3/4
150/80/180 150 80 180 318.1 227.6 G 3/4
150/80/210 150 80 210 371.1 265.5 G 3/4
150/90/140 150 90 140 247.4 158.3 G 3/4
150/90/180 150 90 180 318.1 203.6 G 3/4
150/90/210 150 90 210 371.1 237.5 G 3/4
150/100/140 150 100 140 247.4 137.4 G 3/4
150/100/180 150 100 180 318.1 176.7 G 3/4
150/100/210 150 100 210 371.1 206.2 G 3/4
150/120/140 150 120 140 247.4 89.1 G 3/4
150/120/180 150 120 180 318.1 114.5 G 3/4
150/120/210 150 120 210 371.1 133.6 G 3/4
この製品にダウンロードできる資料はまだありません。

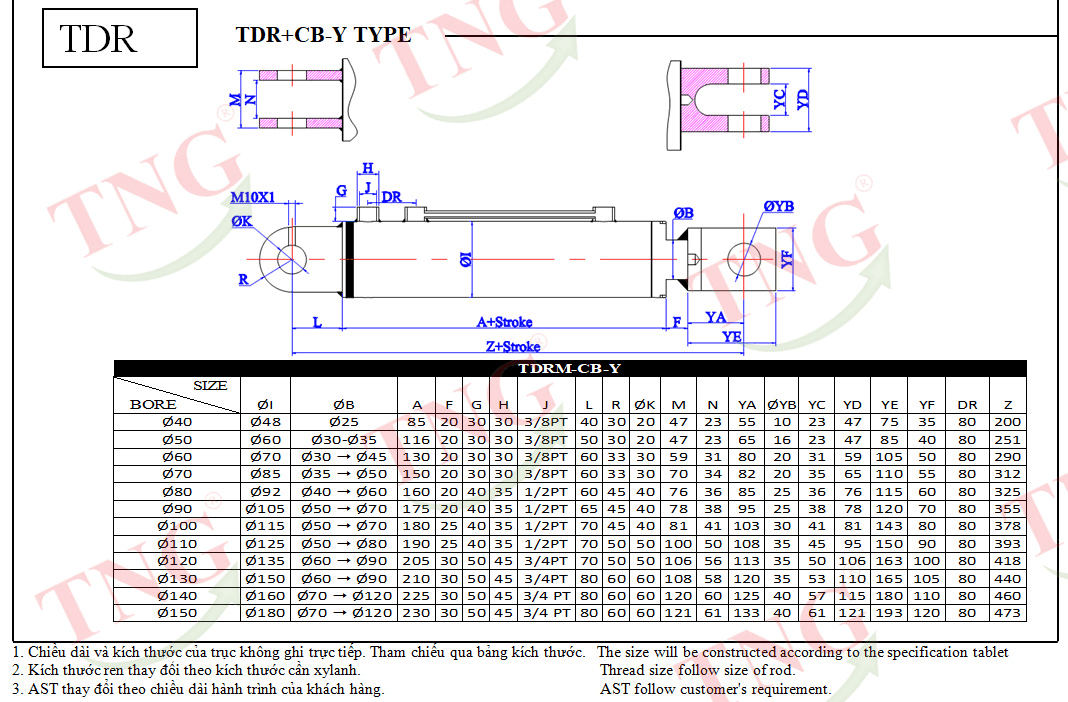

J
Ø40 Ø48 Ø25 85 20 30 30 3/8PT 40 30 20 47 23 55 10 23 47 75 35 80 200 Ø50
Ø60 Ø70 Ø30→Ø45 130 20 30 30 3/8PT 60 33 30 51 31 80 20 31 59 105 50 80 290
Ø70 Ø85 Ø35→Ø50 150 20 30 30 3/8PT 60 33 30 70 34 82 20 35 65 110 55 80 312
Ø80 Ø92 Ø40→Ø60 160 20 40 35 1/2PT 60 45 40 76 36 85 25 36 76 115 60 80 325
Ø90 Ø105 Ø50→Ø70 175 20 40 35 1/2PT 65 45 40 78 38 95 25 38 78 120 70 80 355
Ø100 Ø115 Ø50→Ø70 180 25 40 35 1/2PT 70 45 40 81 41 103 30 41 81 143 80 80 378
Ø110 Ø125 Ø50→Ø80 190 25 40 35 1/2PT 70 50 50 100 50 108 35 45 95 150 90 80 393
Ø120 Ø135 Ø60→Ø90 205 30 50 45 3/4PT 70 50 50 106 56 113 35 50 106 163 100 80 418
Ø130 Ø150 Ø60→Ø90 210 30 50 45 3/4PT 80 60 60 108 58 120 35 53 110 165 105 80 440
Ø140 Ø160 Ø70→Ø120 225 30 50 45 3/4PT 80 60 60 120 60 125 40 57 115 180 110 80 460
Ø150 Ø180 Ø70→Ø120 230 30 50 45 3/4PT 80 60 60 121 61 133 40 61 121 193 120 80 473
